PROFILE SHAPED (CUSTOM CROSS – SECTION) WIRE

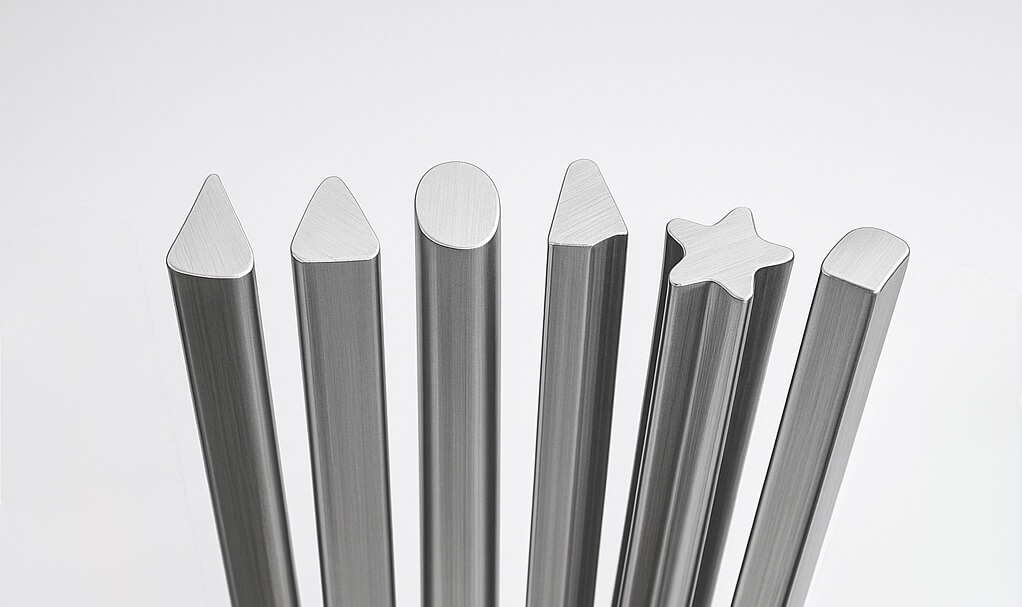

Shaped wires are metal wires that have been drawn or rolled into specific cross-sectional shapes other than the standard round. We provide shaped wire with various cross-sections - for example, flat ribbon, square, rectangular, trapezoidal, half-round, L-shaped, and other custom geometries. By starting with a tailored wire shape, manufacturers can create springs, rings, and other components that perfectly meet design requirements without the need for extensive machining. This not only improves material utilization but also yields parts with optimized performance (such as higher strength or unique fit).
Our shaped wires are available in high carbon steel , stainless steel, and other alloys, allowing selection of the right material for properties like tensile strength, and corrosion resistance. We produce these wires to precise dimensions and smooth finishes, ensuring they are ready for use in critical applications. Common shapes include: flat wire (for wave springs or flat springs), square and rectangular wire (often used in circlips, snap rings and retaining rings for greater contact area), and special shapes developed per customer drawings.
Typical applications of shaped wire stock range from spring manufacturing to retaining rings, electrical connectors, and even wedge-wire filters. By utilizing shaped wire, engineers can achieve versatile design solutions that standard round wire cannot provide – such as improved stress distribution in a spring or a locking ring that matches a groove profile exactly.
- Custom Cross-Sections: We offer wire shapes in flat, square, trapezoidal, half-round, triangular, and more, enabling designs that match exact specifications (including non-symmetrical shapes for unique requirements).
- Enhanced Performance: Shaped wires allow springs and rings to have optimized stress distribution and contact surfaces, leading to higher load capacity or better fatigue life compared to using round wire in the same application.
- Cost & Material Savings: Using pre-shaped wire can eliminate secondary machining operations (such as grinding a round wire flat), reducing production time and waste. The wire comes near net-shape, so components can often be made more efficiently.
- Wide Application Range: Shaped wires are a versatile design component used in automotive and aerospace spring applications, medical devices (specialty wires for instruments or implants), electronics (contacts, connector pins), and any industry where a precise wire form improves the end product’s function or assembly.
